Description

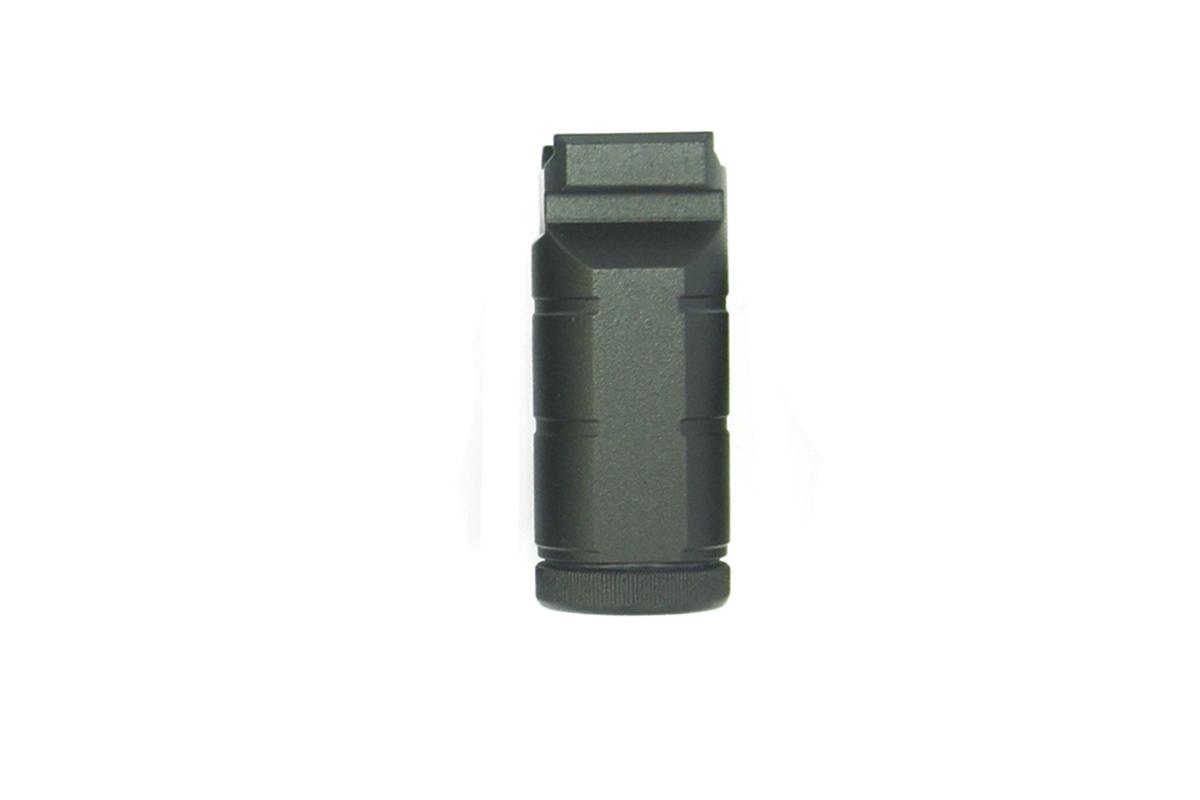

The RK-5 front grip (hereinafter RK-5) is installed on any handguard with a lower Picatinny rail or on the “B-9”, “B-9M” rails and is used for the convenience of holding weapons when firing.
Operational Benefits:
- Strength
- The presence of a sealed container
- Ergonomics
Overall dimensions: (84 х 40х 40) + 5 mm
Weight: 110 + 5g
Material: D16T alloy
Ambient temperature range: -50 to + 50 ° C
Warranty period of storage and operation: 60 months.
To install on a weapon you need:
The first installation method.
1. Before installing the “RK-5” on the handguard, unscrew the screws to the maximum length.
2. To put on the mounting bracket “RK-5” on the lower Picatinny rail of the handguard.
3. Fasten the “RK-5” on the handguard by tightening the screws.
The second installation method.
1. Having unscrewed the screw, remove the external fastening from the “RK-5”.
2. Insert the T-shaped spike of the “RK-5” into the T-shaped groove of the “B-9” bracket.
3. Screw the “RK-5” into the “B-9” bracket body with a screw.
4. Install the “B-9” bracket, with the “RK-5” mounted on it, on the handguard.
In the kit:
- “RK-5” front grip – 1 pc
- Allen key – 2 pcs
- Operation manual – 1pc
