Description

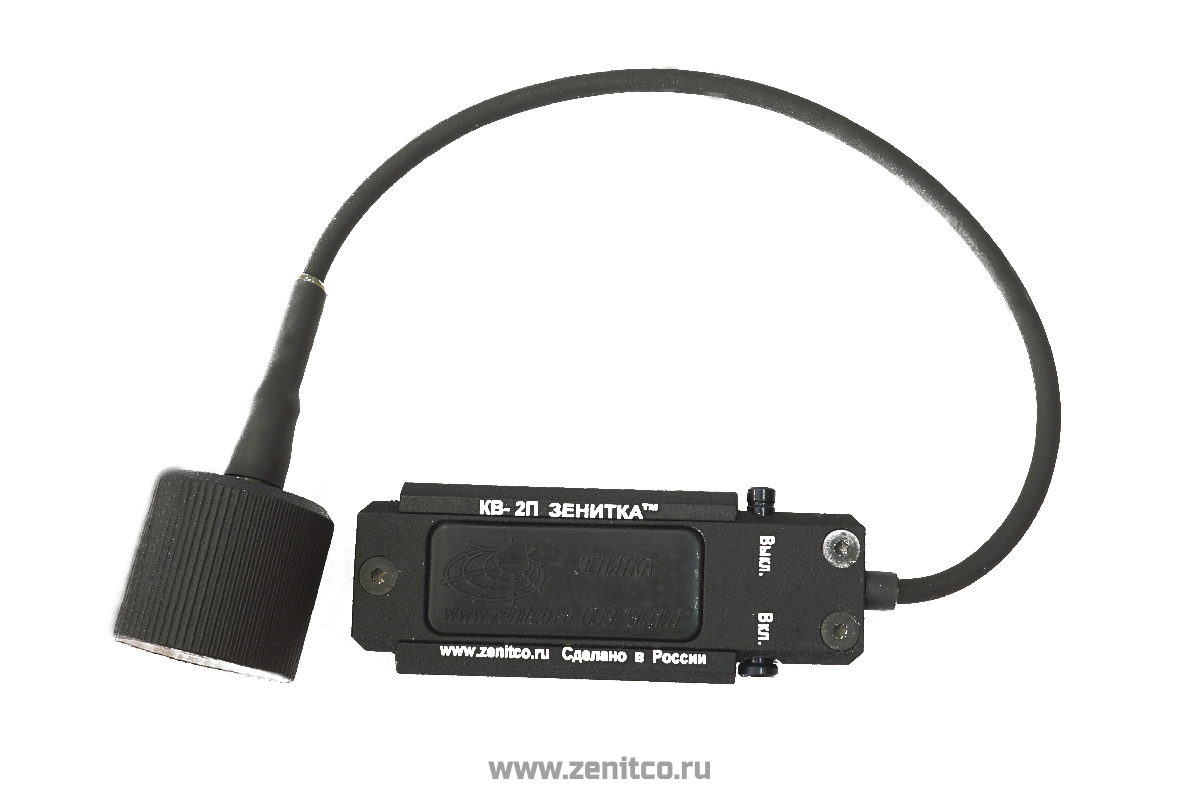

The “KV-2P” tactical switch with mounting on the “Picatinny” rail is designed for “Zenitka-2GR” and “Zenitka-2D” flashlights.
It is equipped with a fuse against accidental switching on.
It is mounted on the “Picatinny” rail using two pressure plates and four screws.
The “KV-2P” is made of D16T alloy with a black coating.
Weight: 70 + 5 g
Overall dimensions: (30х27х330) + 10 mm
Ambient temperature during operation: from -20 ° С to + 40 ° С
Warranty period of storage and operation: 12 months.
In the kit :
- “KV-2P” tactical switch (1 pc)
- Operation manual (1 pc)
To install the “KV-2P” tactical switch , you need:
- Unscrew the cover with the button on the end of the torch of the “Zenitka” flashlights series and screw “KV-2P” to this place
- Unscrew set screws to maximum length
- Install the “KV-2P” to the flashlight or laser connected to it, at any convenient place on the “Picatinny” rail
- Fix the “KV-2P” by tightening the screws
